ECG Data Acquisition



The ECG signal is digitized by ADC1 (channel 2, AIN2). The sampling rate is 480/sec. ADC1 is set to the single conversion mode with the external event triggering the conversion. The conversion trigger source is the Timer1 (TIM1) channel 1. The prescaler of TIM1 is set to 24 while the modular register (Auto-reload register TIM1_ARR) is set to 6250. The system clock frequency is 72MHz and the TIM1 channel output is 72MHz / 24 / 6250 = 480 Hz. DMA channel 1 is setup for transfer the ADC sampled data from the ADC regular data register (ADC_DR) to a memory buffer. The memory buffer size is 240 bytes to hold 120 16-bit data entries, which is size for a period of ¼ second. The DMA Half-Transfer-Interrupt (HTIE), Transfer-Complete-Interrupt (TCIE) and destination memory address auto-increment mode are enabled. The DMA channel 1 destination address is increased each time a sampled data is transferred to the memory buffer until it reaches to the end of the buffer. Then the DMA is automatically wraps the destination address back to the beginning of the memory buffer to form a circular buffer scheme. The double buffering (or so called Ping-Pong buffering) is made by the dual interruptions. When the memory buffer is filled with half of the buffer size data, the Half-Transfer-Interrupt flag (HTIF) is set and signal an interruption. The interrupt service routine (ISR) is activated and a global pointer (for ECG data rendering) is set to point the beginning of the memory buffer. The data in first half of the memory buffer (60 data entries), therefore, is being processed by the ECG data rendering procedure (in the Application_Handler function) while the DMA continue transferring the ADC sampled data to the second half of the memory buffer. When the memory buffer is full, the Transfer- Complete-Interrupt flag (TCIF) is set and there ISR is activated again. At this time, the global pointer is pointing to middle of the memory buffer. So the ECG data rendering procedure processes the data in second half of the memory buffer while the DMA continues transferring the DAC sampled data to first half of the memory buffer. In this way, the data acquisition and data rendering is decoupled without pending each other. The chunk of the buffered data (representing the period of 1/8 second) is served at 8 Hz.



USB Data Transfer

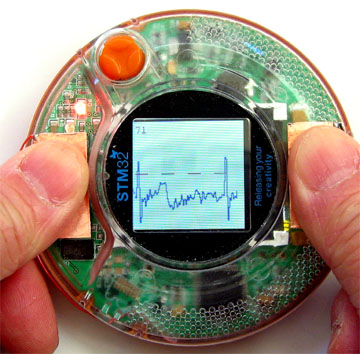

Besides drawing the ECG trace on the LCD display screen, the device also sends the ECG data to a PC through the USB port (the USB port behind the pushbutton). The USB data transfer is using the Human Interface Device (HID) class. The code implementation references the PrimerMouse project posted on the stm32circle.com website. The HID report descriptor is rewritten. Instead of the predefined mouse and pointer device, the report descriptor usage page and the usage are vendor defined classes. The input report size set to 16 for the16-bit ECG data and the report count is set to 60 for sending the entire block of the ECG data at once. Other descriptors are also modified accordingly. When the block of ECG data is ready, besides the trace rendering the Application_Handler function also copies the ECG data to the 512-byte USB dedicated SRAM memory for the input report at Endpoint 1. Because the data block is ready every 128 ms (in 8 Hz), the interrupt (polling) interval is set to 64 ms for guaranteeing there is no missing for the input report. When the device senses the report request, if the data is ready the device sends the data to the host PC.



PC USB Handler and ECG Display Software



The PC USB handler and ECG display program is written in Windows .NET environment using the C# language. Figure 6 is screenshot of the PC host GUI. Since the PC software development is not in the scope of the contest, detail description is omitted. However, the PC software executable is provided in the uploaded zip file (require .NET framework 2.0 or later installed).
